Rear lighting plans, (we will update as jobs progress).
Items in “grey” are still to-do.
Items in “mauve” needs to be fixed, replaced, upgraded or we need more.
Items in “brown” are under construction.
Items in “green” are almost completed or on order.
Items in “black” completed.
Items in “italics any colour” are listed in another category, (see links).
Rear driving lights
Fully LED rear light clusters.
LED driving tail lights.
LED brake lights.
LED Mid-level brake lights, (top of the rear window on with main brake lights).
LED indicator lights.
LED mid-level indicator lights, (top of the rear window on with main indicator lights).
LED rear hazard lights, (uses the indicators).
LED mid-level hazard lights, (top of the rear window, linked with main hazard lights).
LED twin fog lights.
LED twin reversing lights.
LED DRLs, (linked with the front DRLs).
LED high-level hazard lights. (on the roof rack, linked with front high-level units).
LED rear floodlights, (both sides, on the roof rack).
Spacers for rear light clusters, (see bodywork).
12v power outlet in rear light clusters, (see electrics).
Trip alarm & electric fence connection in rear light spacers, (see electrics).

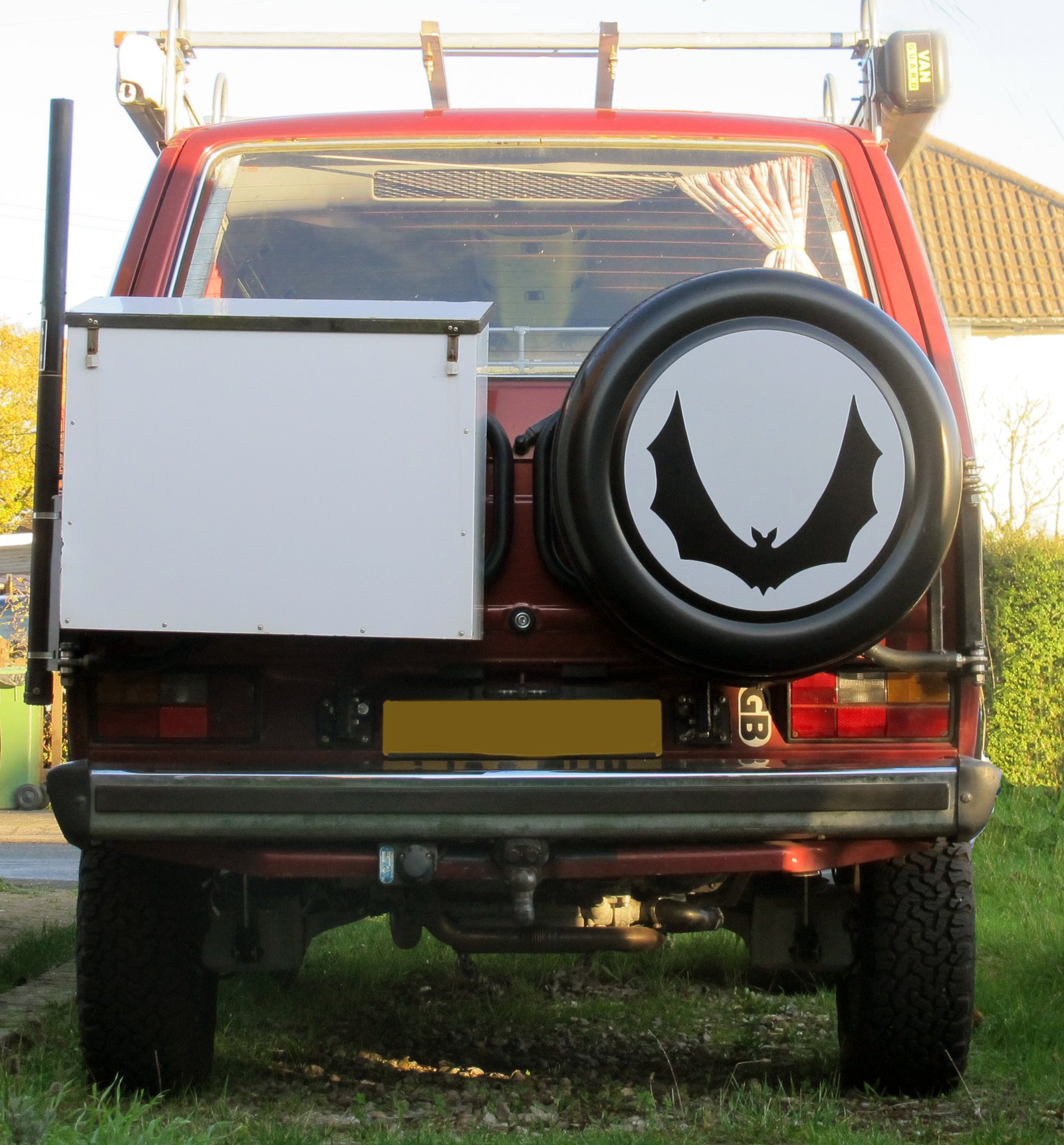

Original & current configuration.
More photos & info ASAP
